Scarab 350 trimaran family fun boat

This boat was designed for the beginning builder. Some experience using tools is needed.

See some pictures of this boat construction

May be transported on a small box trailer, also beams and floats are demountable if required for car topping. The boat is sailed sitting on the side deck or trampoline with a standard rudder/tiller. Suitable for 1 or 2 crewmembers.

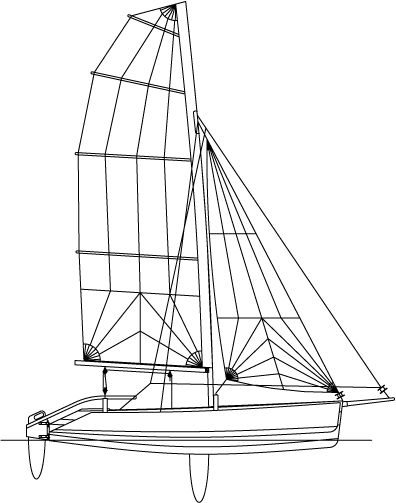

scarab 350

Scarab 350

The boat is sailed sitting on the side deck or trampoline with a standard rudder/tiller. Suitable for 1 or 2 crewmembers.
Sealed buoyancy chambers.

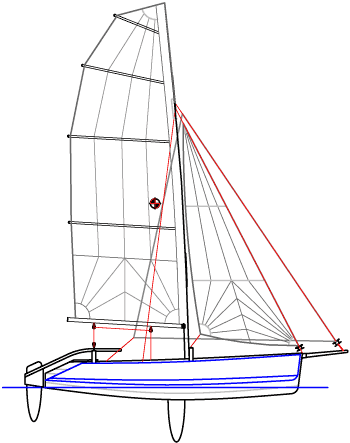

scarab 350

scarab 350

Scarab 350

Scarab 350

Scarab 350

Length overall.................................... 3.445m (11' 4")
Beam Overall...................................... 2.286m (7' 6")
Sail area:
Main.................................................. 5.5 sq m (60 sq ft) pocket luff
Jib..................................................... 2 sq m (22 sq ft)
Screecher........................................... 4 sq m (44 sq ft)
Construction: 4mm marine plywood - stitch and tape or fibreglass foam sandwich.
Beams: Ply or foam and fibreglass.

Buying plans

Study Plans: sent in PDF format within 24 hours. Study plans are provided to show a dimensioned general layout and sail plan, accomodation and a basic material list. Some other details may also be included. The boat cannot be built from the study plans but are provided for information and basic pricing.

Plans: the full plan set is required if the you want to build this boat. It contains all the information and dimensions required. The plans are presented in PDF format. These can be printed on your home printer on A4 size paper or sent to a photo copier to enlarge to A3 size. Plans consist of 21 drawings in PDF format emailed within 24 hours.

Full size paper templates: these are provided as PDF files that may be printed by a Plan printing Business. The plan printer must have a "continuous roll A0 plotter". The full size templates are only required if desired, all the dimensions required to build are included in the full plan set.

Study plans $15 AUD
Full plan set $150 AUD
Full size paper templates $60 AUD

* If your emailed order has not arrived within 24 hours check your spam box. If it is not there contact us
