The Panels

This boat will be built using Klegecell foam and polyester panels but the method is similar with plywood construction.
Our laminating shed is only 9m x 9m so setting up a surface to make panels (or scarf plywood panels) for a 32 foot boat is a little tricky. We set the tables across the shed diagonally and will carry the finished panels through a window to the other shed containing the building frame.

Four sheets of Klegecell where joined together using resin mixed with aerosil to make the 32 foot length (a four sheet boat). The sheets were held in place with drywall screws until the glue dried. When the screws were removed the holes were filled with filler (Q cells mixed with resin).
Glass was laid out on the foam and smoothed out. Peel ply was pre-cut in sections so it could be applied quickly to the panel. The resin was poured onto a section of foam and spread with a quality drywall tool ensuring complete wet out and covering only a small area Peel ply was then added quickly. After the first side had cured the whole panel was turned over and the glass added to that side. We now have a full length sheet glassed both sides.
We have noted the amount of resin used per panel and the amount to cover the Klegecell foam and we are within 5% of the theoretical amount. We have found it is a quick way to make a full length panel that requires very little finishing without expensive pumps and consumables.
It is not a quick as building with plywood but almost.
We use Nuplex LSE (low styrene emmission waxed resin) and there is no detectable ordour so it will not offend the neighbours.
> The panel shapes were lofted onto thin (3mm) low grade plywood. These shapes were then cut out to become templates. The shapes were drawn onto the foam panels and then cut out with a jig saw. You could draw the panels straight onto the laminated panels if desired.

panels panels

panels panels

panels

The Main hull

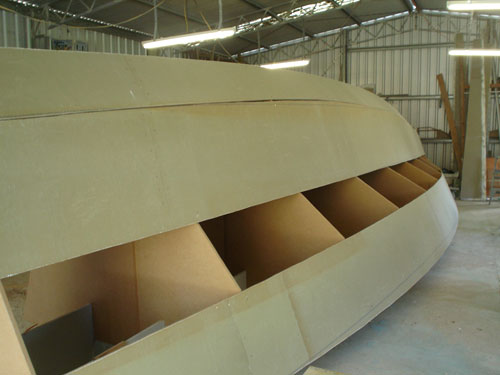

MDF temporary bulkheads slotted onto MDF longitudinals. Both longitudinals had a steel channel member attached to ensure straightness.

main hull main hull

main hull main hull

main hull main hull

Ready for final alignment and bogging.

main hull main hull

Grinding where the tape will attach. Taped and peel ply added.

main hull main hull

main hull Scarab 32

Hull was filled with Q-cells. Sanded and primed with Jotun penguard leaving an area to be painted with copper expoxy anti-foul.

Scarab 32 Scarab 32

Scarab 32 Scarab 32

A quick peak underneath before turning the hull.

Scarab 32 Scarab 32

Scarab 32 Scarab 32

Scarab 32 Scarab 32

Temporary braces to aid with turning the hull.

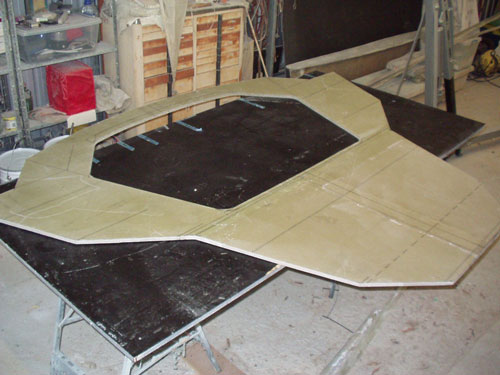

Main hull Main hull

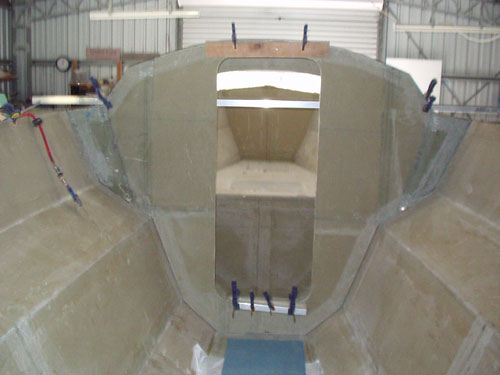

Main hull Scarab 32

Scarab 32 Scarab 32

Scarab 32 Scarab 32

Main hull Scarab 32

Scarab 32 Scarab 32

Scarab 32 Scarab 32

Scarab 32 Scarab 32

Scarab 32

Floats

The building frame for the float was cut out and assembled. We used MDF which was not our first choice. Supplies of plywood are very limited where we live so you take what you can get.

float float

Temporary bulkheads set up on the strong back. We used a steel channel section between the sides of the strong back. This ensures straightness but also made the sides quite close together. This is the reason for the props on the sides of the temporary bulkheads.

float float

Attaching the panels. We removed the peel ply from the pre-made panels and attached the bottom panel first to the top of the frame. We use gyrock (dry wall) screws through the panel then into the temporary bulkheads. There is a problem screwing into the edge grain of MDF as it will split, some times pre-drilling is required.
The screws are removed when the panel edges have been bogged.

float float

Alignment of the panels and bogging the joints.
We use a combination of nylon cable ties and soft steel strapping to align the panels.
Bog is applied between the strapping or cable ties and after they have been removed the joint is touched up with more bog.
The steel strapping is available from builder's suppy shops and is pre-punched with holes. It is used for bracing house frames.

float float

Cable ties removed from stem and adhesive applied. Using clamps and straight board (timber or steel) the panels were aligned while the adhesive cures. The inside of the panels must be ground at the inside of the stem before assembly. The adhesive to consist of resin, aerosil (cabosil) and cotton fibres.
Chines and stem bogged and radiused using a long board (plywood board about 600mm x 150mm covered with 80 grit sand paper). The area to be taped or covered with glass must be ground using 60-80 grit disc in an angle grinder.

float float

Chines and stem covered with double bias fibreglass. The double bias covers the entire bottom and bilge panels and extends about 65mm onto the side panel.

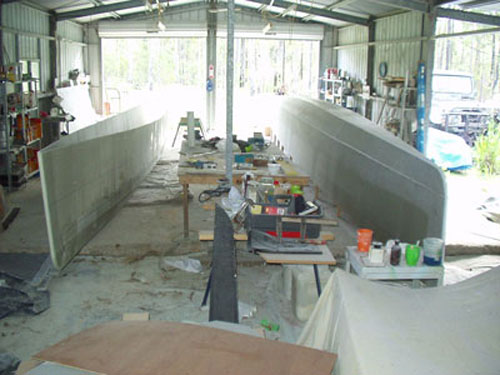

The float was lifted off the building frame and the other float constructed the same way.

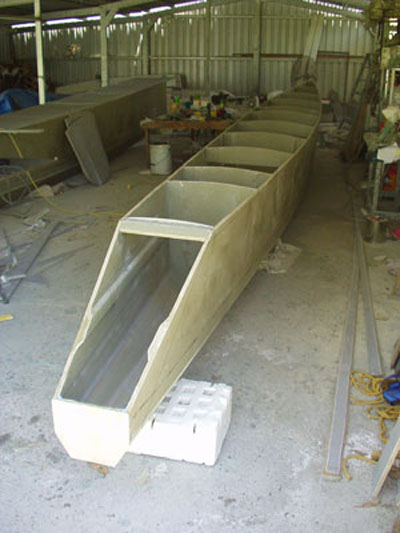

First float right way up ready for the innards, second float progressing.

float float

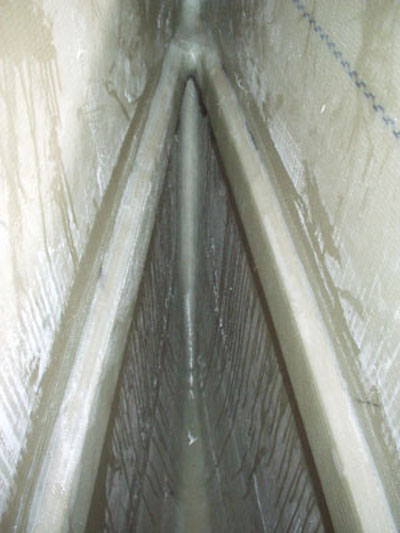

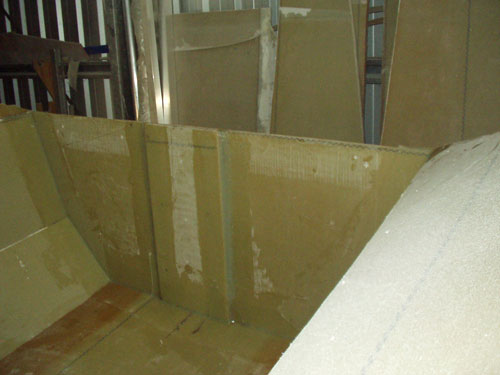

Inside of joints taped, stringers glassed in and bulkhead locations ground ready for installation.
We use a “wet fillet” method when taping joints. The area to be taped was sanded and coated with resin. The mixture for the fillet is aerosil/cabosil and cotton fibres mixed to a paste with resin. The fillet is formed with a filleting tool that has a radius similar to that of a compacting roller. Pre-wetted tape is applied over the fillet and compacted.

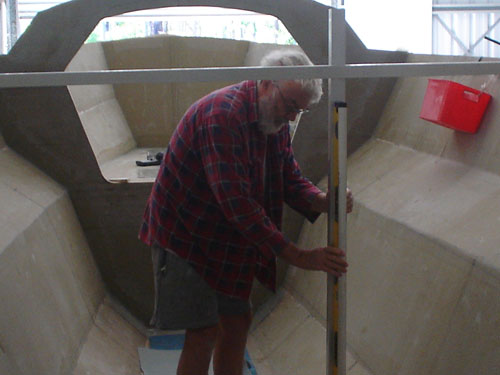

Bulkheads and deck beams glassed in (taped). We use a laser leveller to set the hull up so the bulkheads are vertical.
The beam support bulkheads must be double taped. This is easy to do by pre-wetting the tapes, rolling them up together and then placing them in the hull at the bulkhead/hull joint and unrolling over the wet fillet. The tape is then compacted carefully ensuring that there are no air bubbles. This method produces a very strong joint and the fillet does not need to be cleaned up and sanded before the tape is applied.

float float

Inside detail at the chain plate for back stay. A foam doubler is laminated to the side. Foam in the doubler and the side panel is removed with a 30mm dia. hole saw, back fill with very strong thickened resin (aerosil and cotton fibre) and glassed over on the inside. A threaded aluminium or stainless steel plate is fixed to the doubler with Sikaflex.

float float

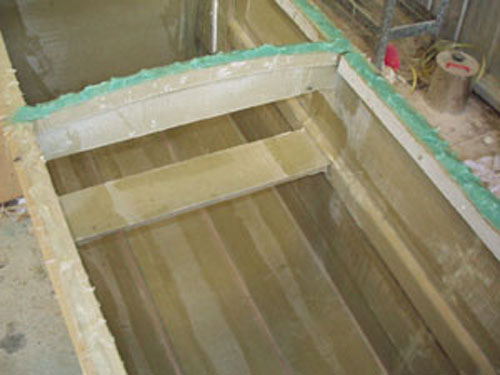

Detail of "anti oil canning brace" between the stringers, location shown on the plans.
Transom detail.
Extra strips of foam sandwch glued to the sides to make a channel for the adhesive bonding the deck to the hull.

float float

The channel runs the entire inside perimeter of the deck and is repeated at the deck beams. The deck beams have the foam removed to a depth of about 10-15mm. The horizontal brace below the deck beam is to prevent "oil-canning" of the sides between the bulkheads.
The glue used is a mixture of resin, aerosil/cabosil and cotton fibres.

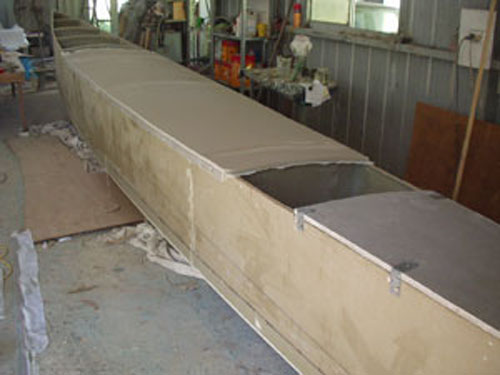

The deck installed in three separate lengths to allow for the beam installation.
The decks on this prototype have a layer of unidirectional fibreglass on the under surface in addition to the standard lamination. This was done to eliminate any deck stringers and seems to work well as designed.
The deck panel was made using the uni on the underside first with the main fibres running fore and aft. no glass on top at this stage. The panel was lifted onto the hull and temporarily fixed at the edges. The curved panel was then glassed on the top surface locking the curve inplace. Panel was then removed and the standard lamination applied over the uni. We now have a nice pre-curved deck panel that doesn't require stringers.

The foam blank was laminated on one side with unidirectional cloth with the main fibres running longitudinally. This became the underside of the deck. The blank with the uni on the underside was attached temporarily to a non permanent gunwhale. I used scrap 25mm strips of foam and glass screwed to the side of the float at the sheer line. The blank was then bent over the bulkheads and screwed to the temporary gunwhale. The blank was about 15mm larger all around than the final required shape. The top lamination of glass was added to the blank and when cured the blank together with the temp gunwhale removed. Because the screw heads were now covered with glass I used a holesaw with the centre drill removed to cut the glass and foam to remove the temp gunwhale. The deck blank now has a permanent camber which will correspond to the deck beams and bulkheads. Another layer of glass was laminated over the uni directional on the underside and presto, a cambered deck panel without the need for stringers.

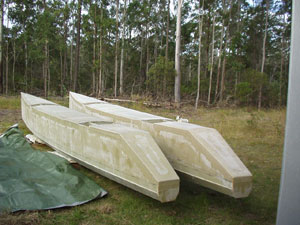

This panel was glued down to the beams, bulkheads and sheer (they all had an extra thickness of foam and glass added) and held around the edge with soft steel straps until the glue cured. The straps removed, edge routered (to round off the edge) and then the edge taped. When all this was complete we moved the two floats outside and covered them up with tarps.

The deck edge was radiused with a router and glass taped to the sides.
CAUTION - When using a router on foam sandwich panels make sure you wear googles to protect your eyes and a long sleeve shirt as nasty bits of glass fly in all directions at great speed.

float float

Scarab 32 float Scarab 32 float

float

The Beams

resin beam

The plywood mould. Mould is painted with high build primer

beam beam

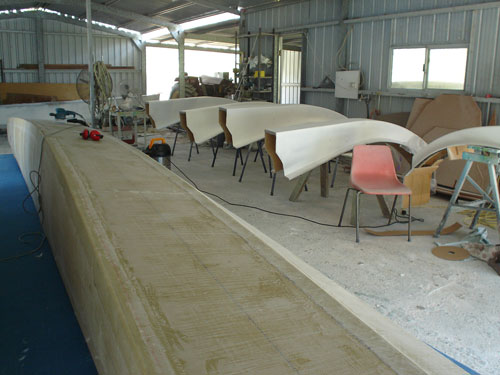

Mould painted with 2 coats of 2 pot polyurethane. The beam mould was waxed and plasticine was added in the corners to make a smooth easy fillet. Gel coat applied. Then the layers of glass were added using polyester laminating resin. By using unwaxed resin there is plenty of time to add each layer.After all the layers are added the beam is removed from the mould and the plasticine cleaned off.

beam beam

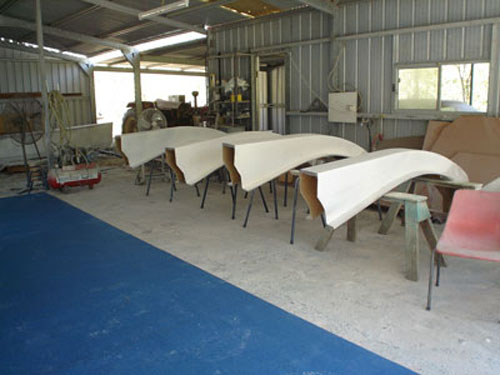

The beams on the Scarab 32 are similar to the beams on most of Ray's other designs. These beams were built using polyester laminating (unwaxed) resin. These beams are designed to be built by homebuilders with a minimum of extra equipment.

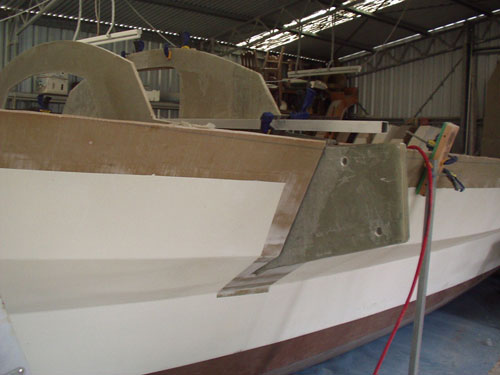

The folding mechanism is housed inside the top hat section and connected to beam stubs extending from the main hull.

beam

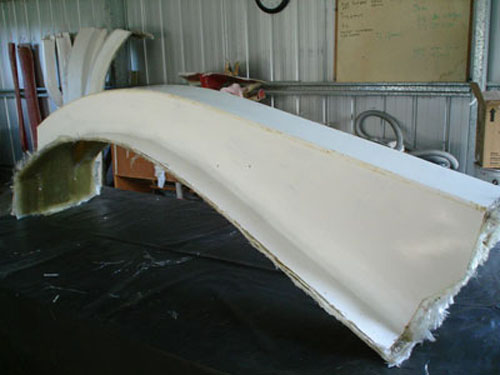

To avoid air bubbles on the surace of the beam we used gelcoat even though we were going to paint the beams. After the beams were removed from the mould the edges of the flanges were trimmed back using a diamond studded disc in an angle grinder.
The beams were not built in single step. As the resin hardens the heat produced would distort the final beam and we find it is better to spread the job over several days.
