Double Shuffle 5.6 metre catamaran

This design is for intermediate builders. Some boat building experience would be helpful.

5.6 cat

5.6 cat

5.6 cat

5.6 cat

5.6 cat

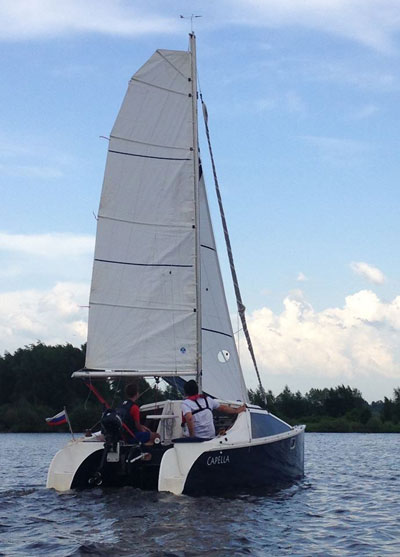

This boat was built by Boris in Russia

See pictures of this boat under construction

5.6 cat

5.6 cat

Double Shuffle

Double Shuffle

double shuffle

double shuffle

double shuffle

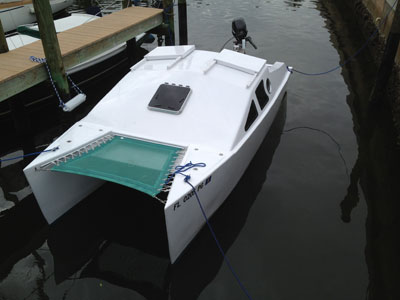

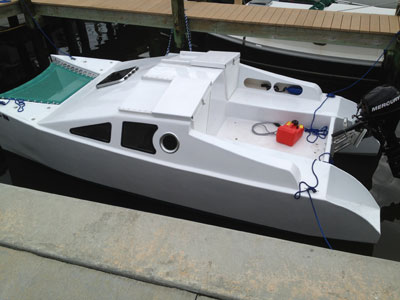

Double Shuffle built by Keith in Florida

5.6 cat

5.6.cat

5.6.car

A double berth extends across the bridge deck on removable infill panels. When not in use the bedding can be folded over, panels stowed under the bedding and a seat is then available port and starboard. A portapotti can be stowed under one of the single bunks. Plenty of stowage is available in the cabin, also room for an "esky" cooler.

5.6.cat

The beams are timber and plywood fibreglassed. The complete boat is of legal width for trailering so no folding or assembling required. Auxiliary power is an extra long shaft outboard motor, 4 hp mounted on a standard lifting bracket mounted on the aft beam. Double shuffle should be a handy boat for weekending/camping in sheltered waters. If kept light a small car is all that should be necessary for towing.

Length Over All............................. 5.6m (18' 4")
Beam Over All............................... 2.48m (8' 2 ")
Width on trailer............................. 2.48 (8' 2")
Draft........................................... 250 mm - 900mm (10" - 3' 0") pivoting board
Weight (approx)............................570kg (1250#) hull, rig, motor, fuel, water etc
Sail area:
Main............................................ 9 sq m (97 sq ft)
Jib............................................... 5 sq m (54 sq ft)
Mast height.................................. 5.7m (18' 9")

Buying plans

Study Plans: sent in PDF format within 24 hours. Study plans are provided to show a dimensioned general layout and sail plan, accomodation and a basic material list. Some other details may also be included. The boat cannot be built from the study plans but are provided for information and basic pricing.

Plans: The full plan set is required if the you want to build this boat. It contains all the information and dimensions required. The plans are presented in PDF format. These can be printed on your home printer on A4 size paper or sent to a photo copier to enlarge to A3 size. There are 29 drawings in PDF format emailed within 24 hours.

Study plans $15 AUD
Full plan set $150 AUD
DXF cutting files $60 AUD
